| Pin Function Diagrams 240 Conversion Harness LH 2.2 with EZK Ignition |
 |
Updated: January 2, 2026
CONTACT
|
D O
M A I N S
 |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
 |
 |
 |
|
|
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
 |
 |
|
 |
 |
 |
 |
 |

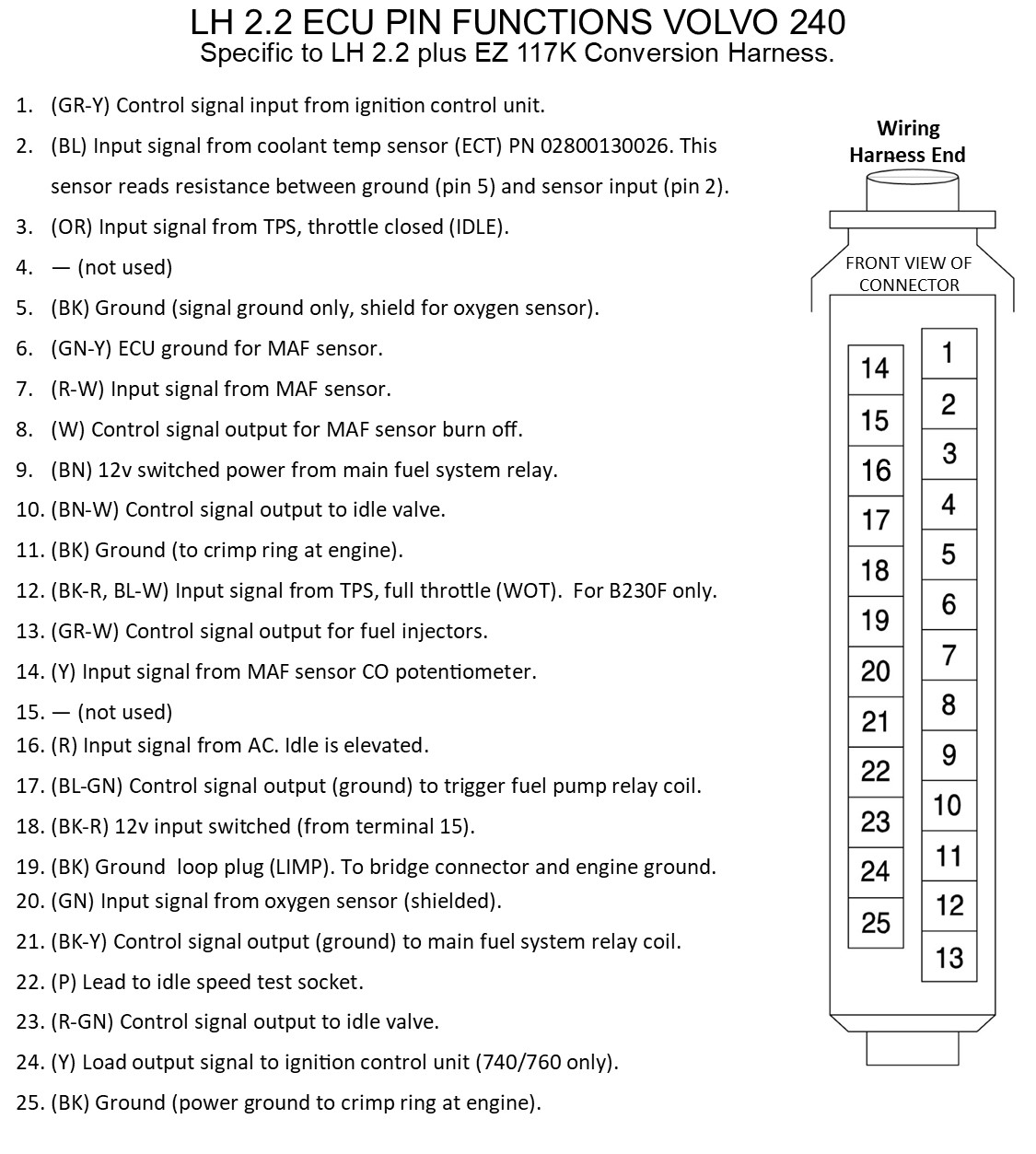

Page 1 |

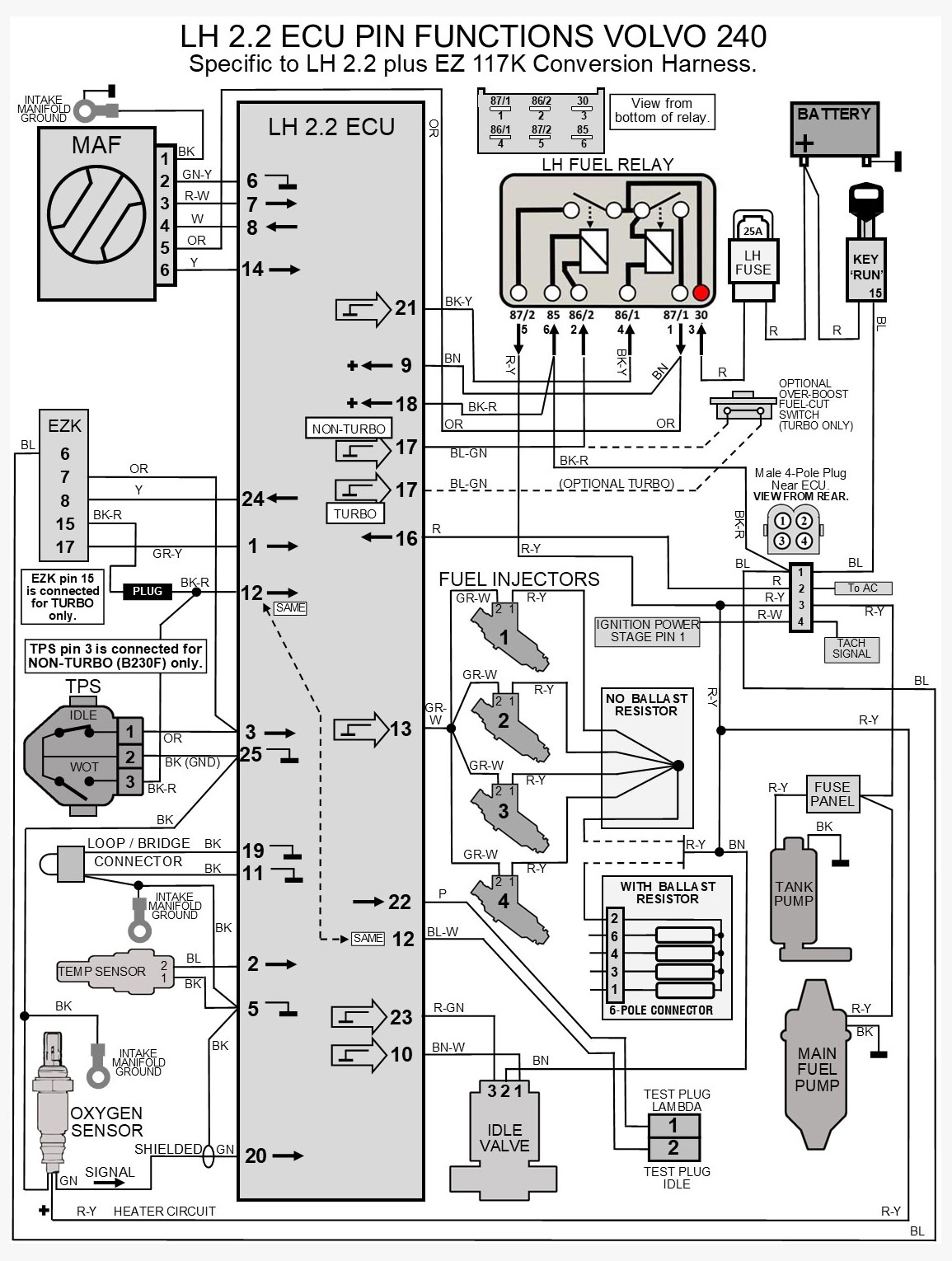

| Page 2 The fuel pump relay shown below requires a coil tachometer signal from the EZK pin 17 to the ECU pin 1 to activate a signal for the relay. More about this can be found in the Fuel Pump and Fuel Pump Relay Page.  |

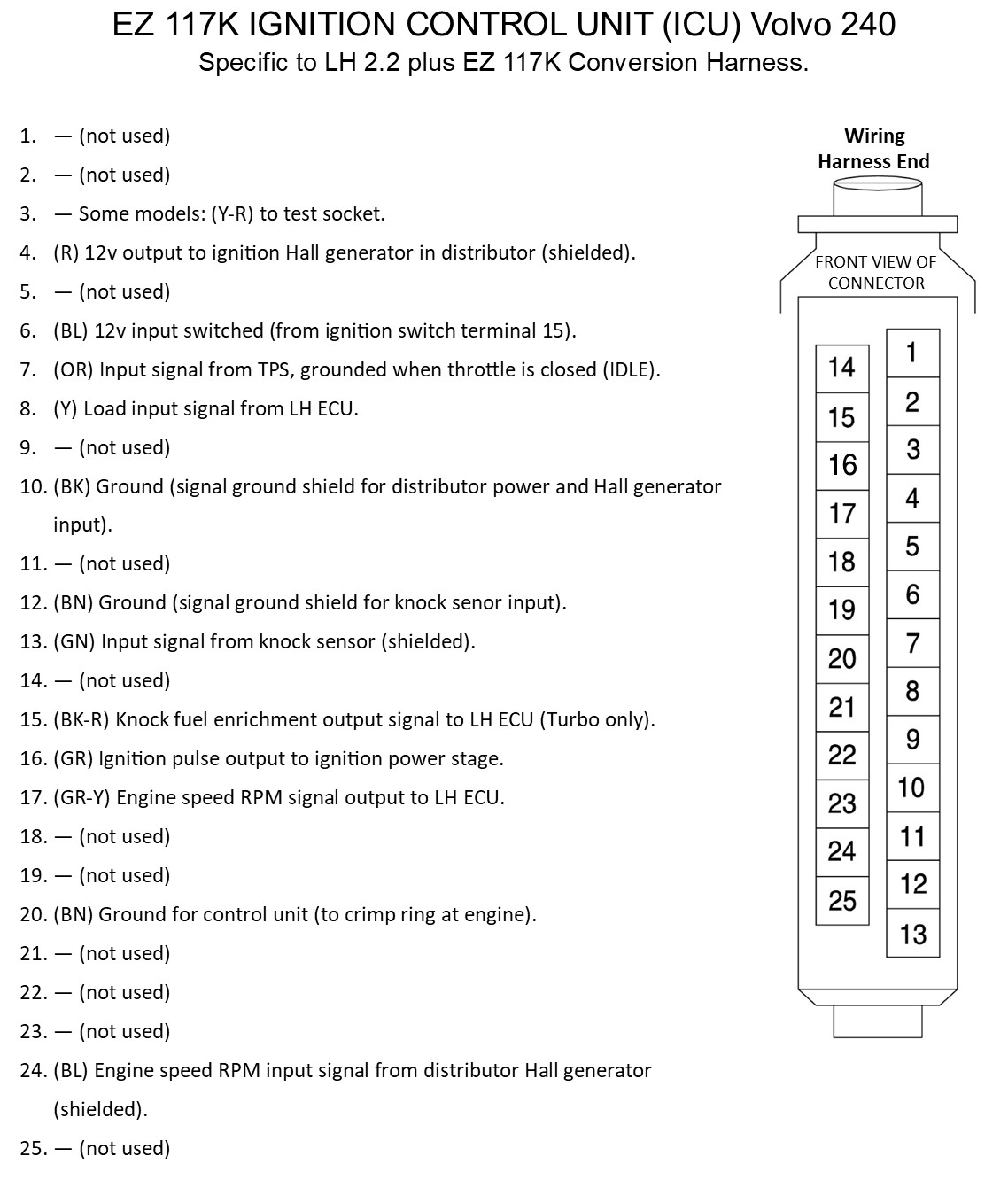

Page 3 |
| Page 4 The fuel pump relay shown in another diagram above requires a coil tachometer signal from the EZK pin 17 below to the ECU pin 1, which is used by the ECU to activate a signal for the fuel pump relay. This ICU below receives engine RPM signals via pin 24 from ignition distributor pin 2. More about this can be found in the Fuel Pump and Fuel Pump Relay Page.  |
