| Pin Function Diagrams 1980-82 240 B21F K-Jet with Bosch Breakerless Ignition or Computerized (Chrysler) Ignition |
 |
Updated: December 26, 2025
CONTACT
|
D O
M A I N S
 |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
 |
 |
 |
|
|
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
 |
 |
|
 |
 |
 |
 |
 |
Page 1 |
| Page 2 The fuel pump relay shown below requires a coil tachometer signal to activate. More about this can be found in the Fuel Pump and Fuel Pump Relay Page. More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |
| Page 3 The fuel pump relay shown below requires a coil tachometer signal to activate. More about this can be found in the Fuel Pump and Fuel Pump Relay Page. More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |
Page 4 |
| Page 5 The fuel pump relay shown below requires a coil tachometer signal to activate. More about this can be found in the Fuel Pump and Fuel Pump Relay Page. More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |

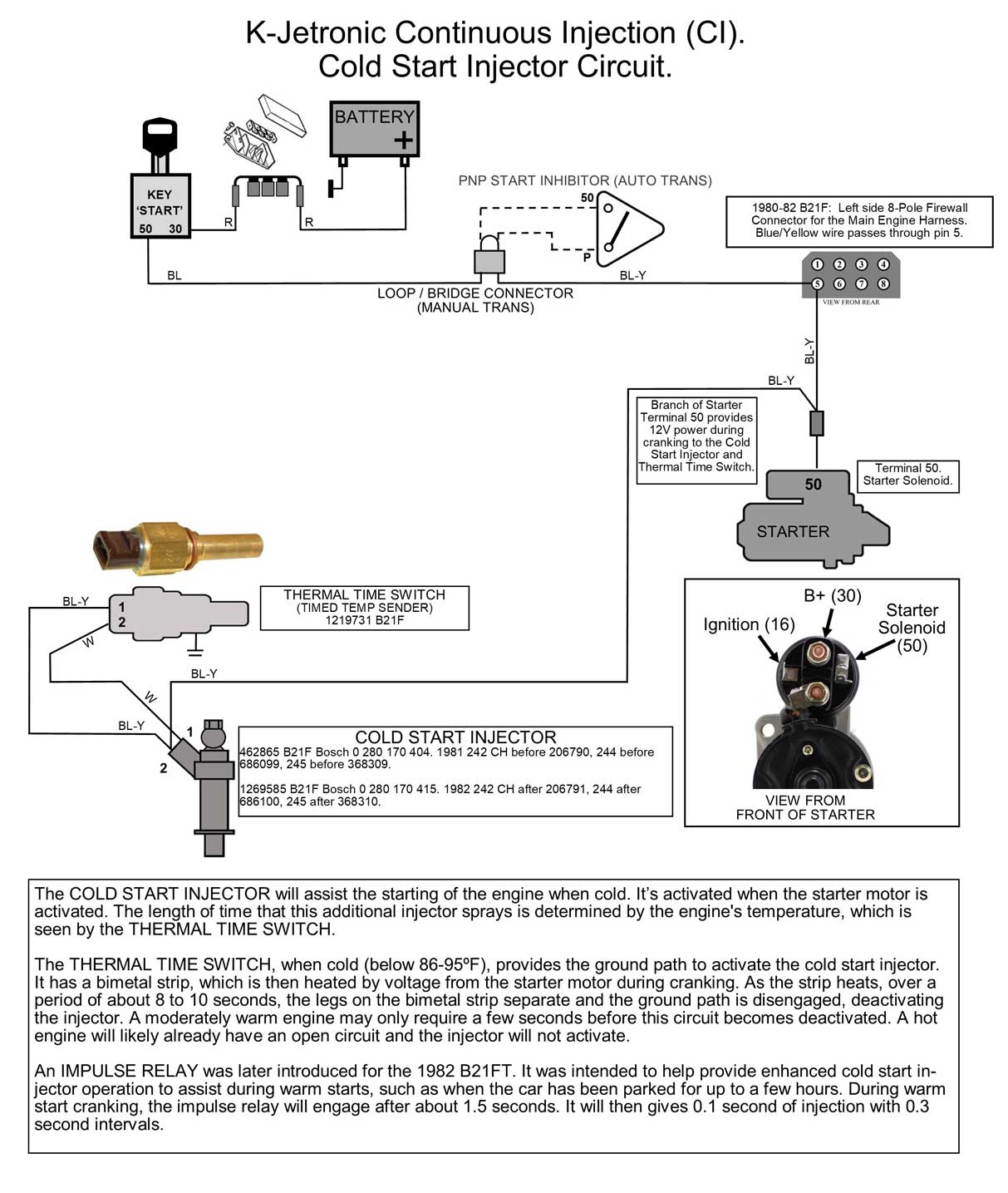

Page 6 |
Page 7 |

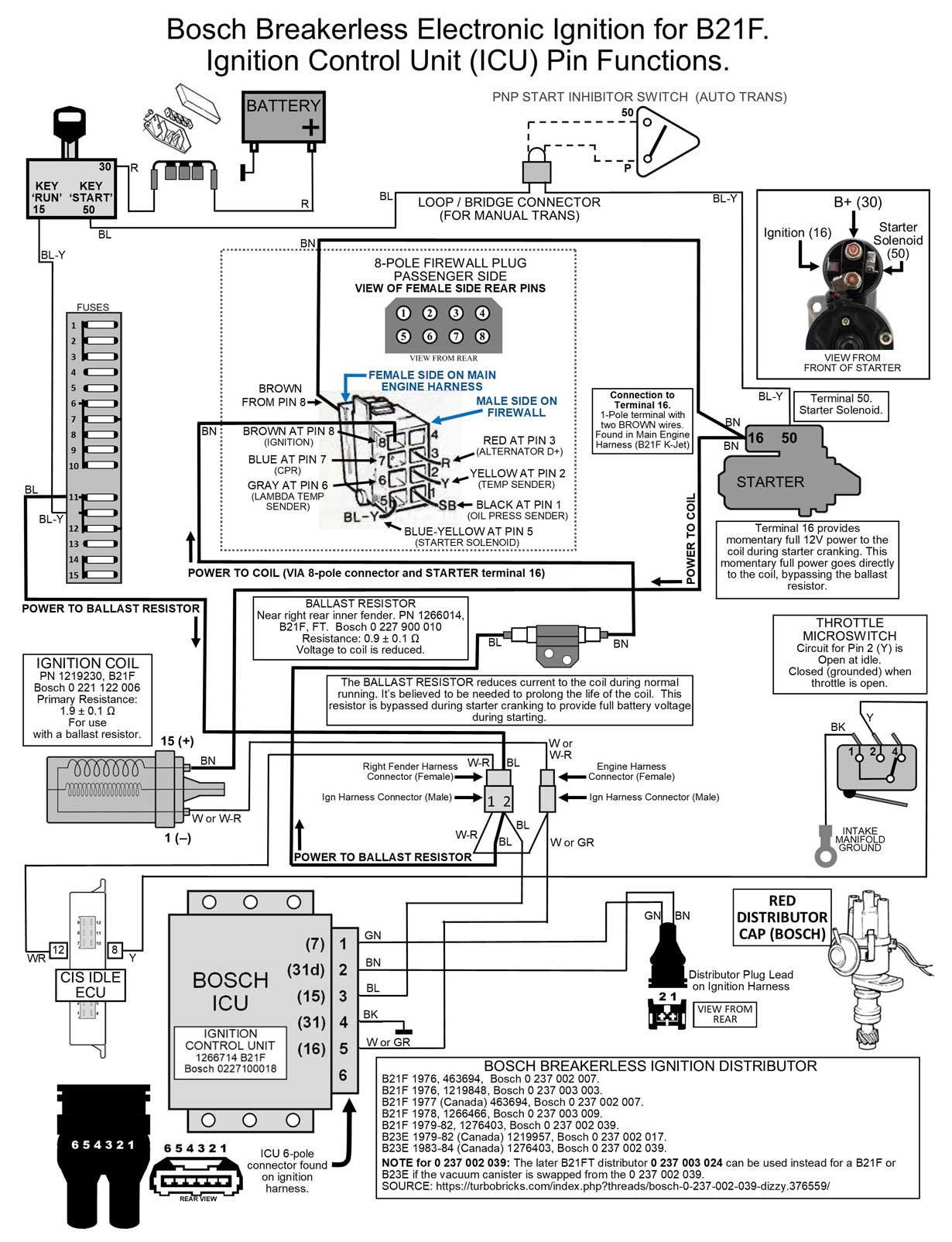

| Page 8 More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |

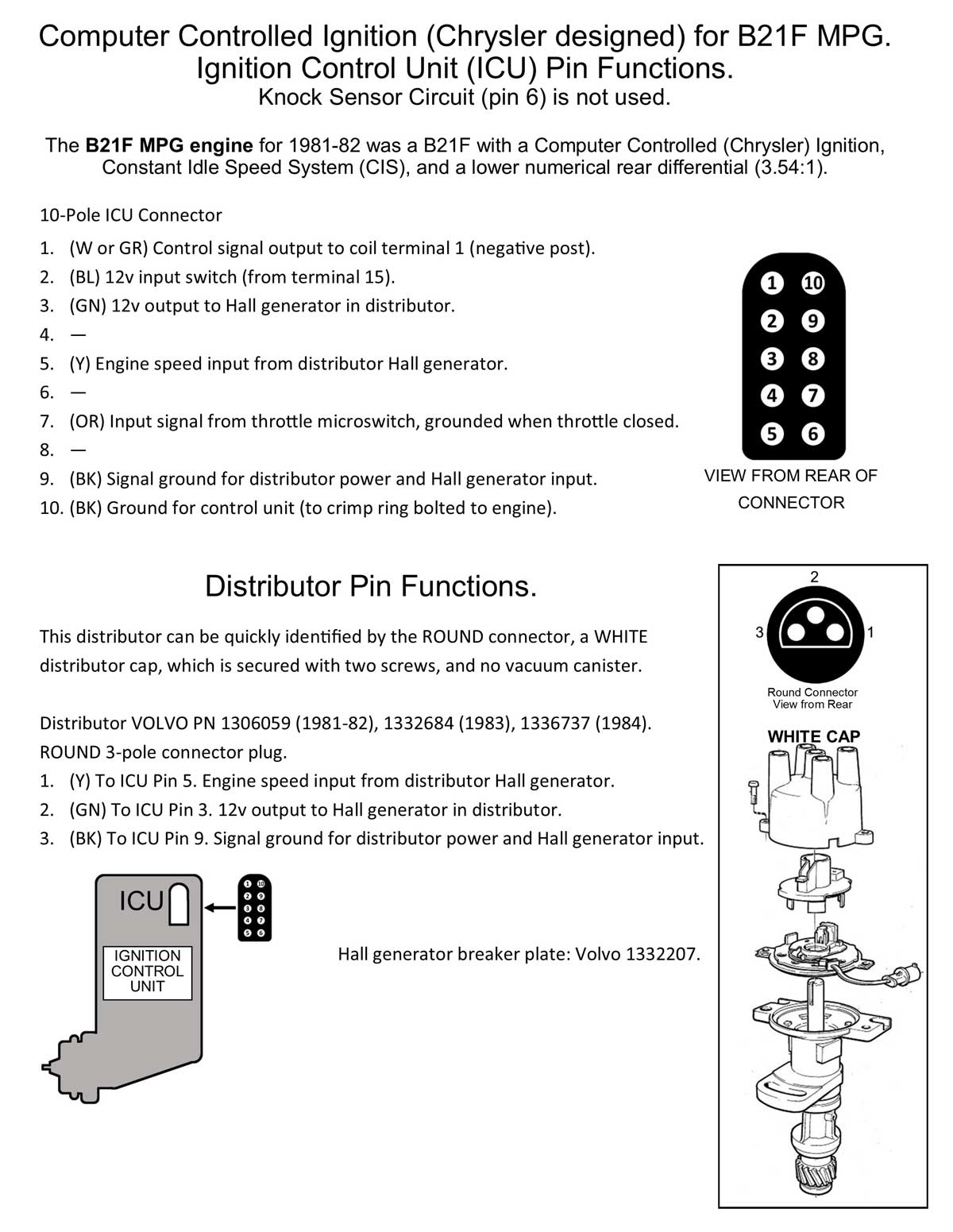

Page 9 |

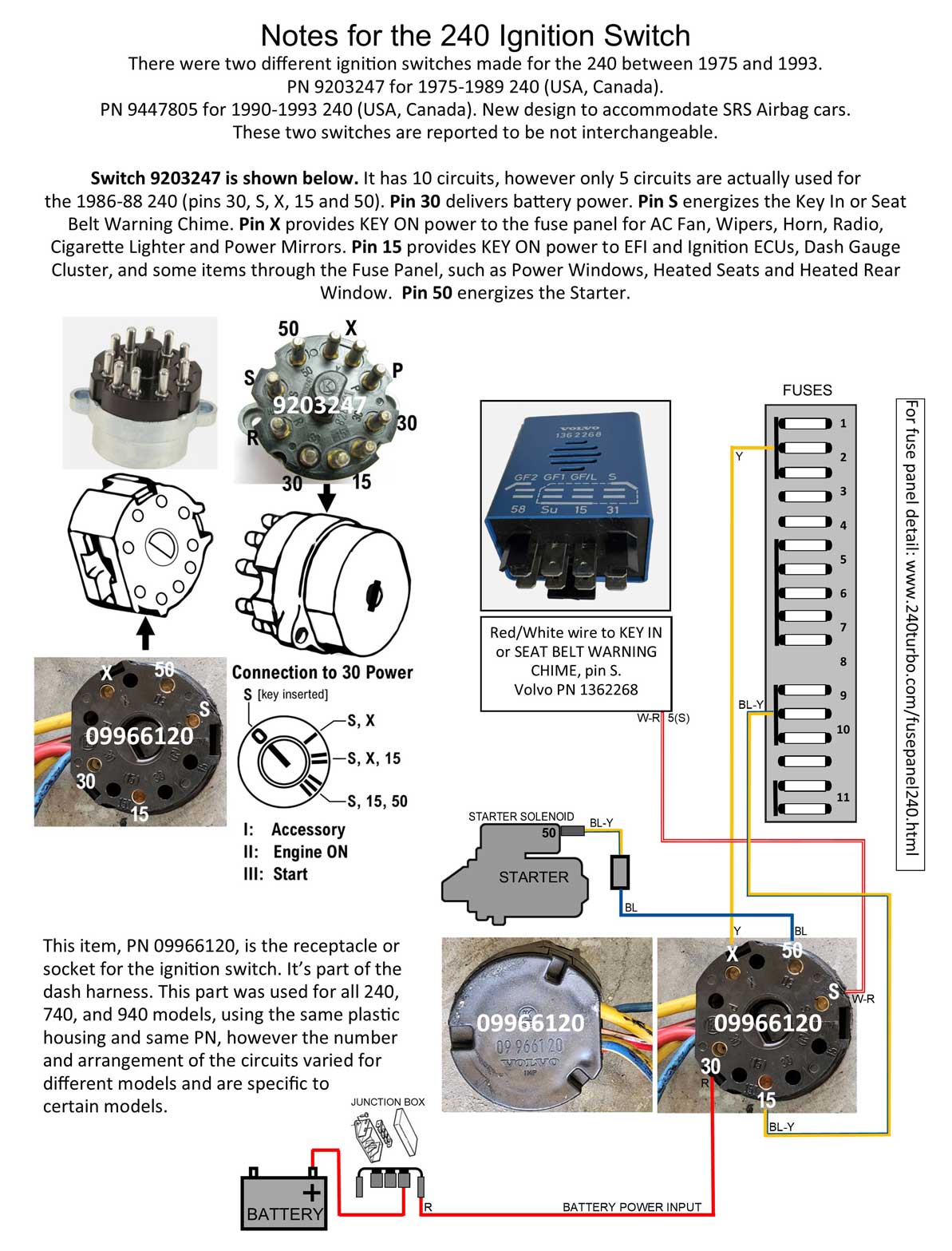

| Page 10 More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |
| Page 11 More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |

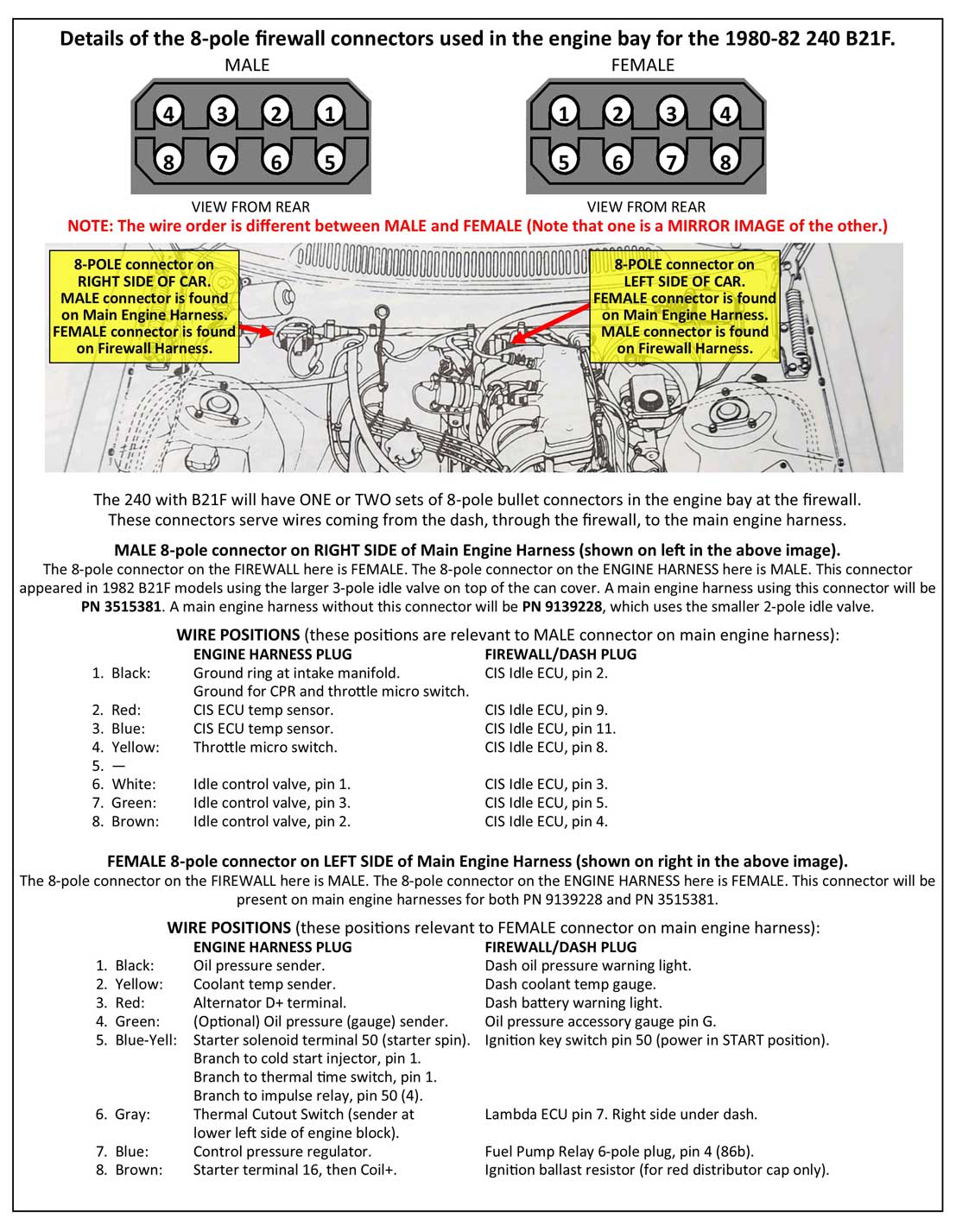

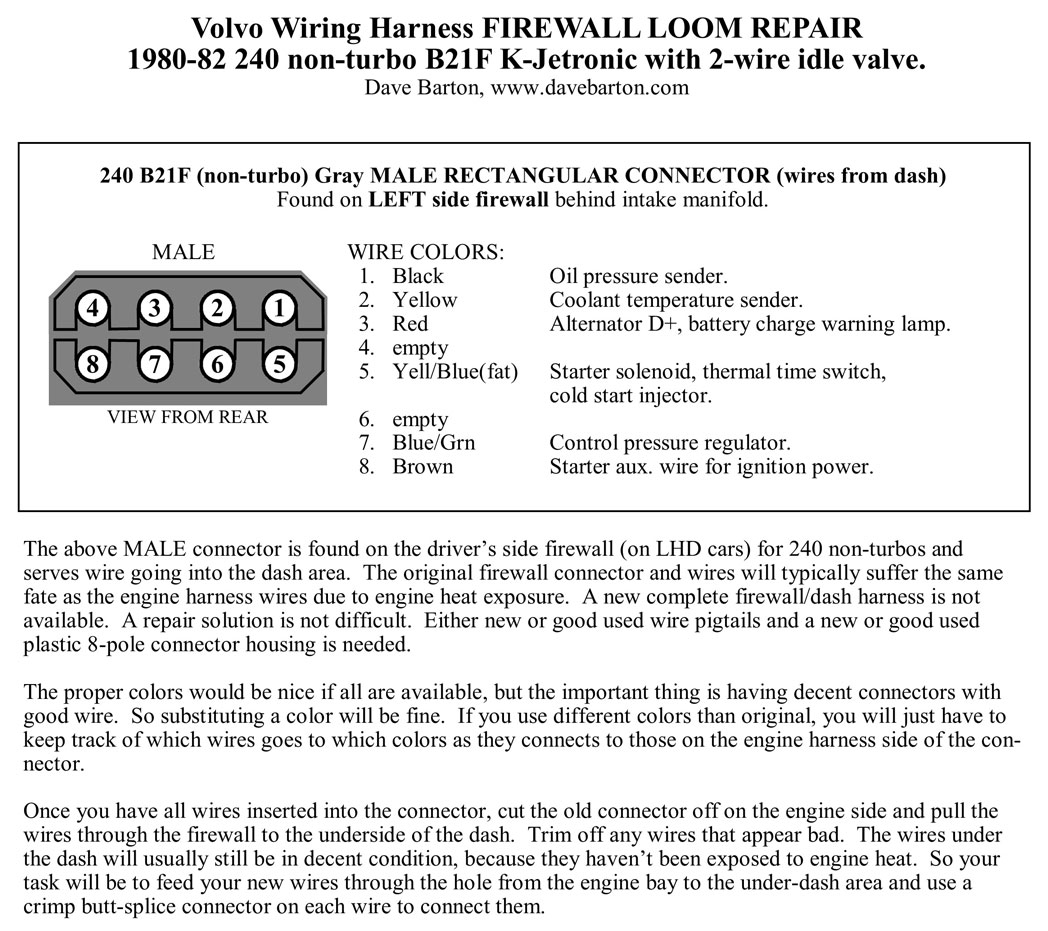

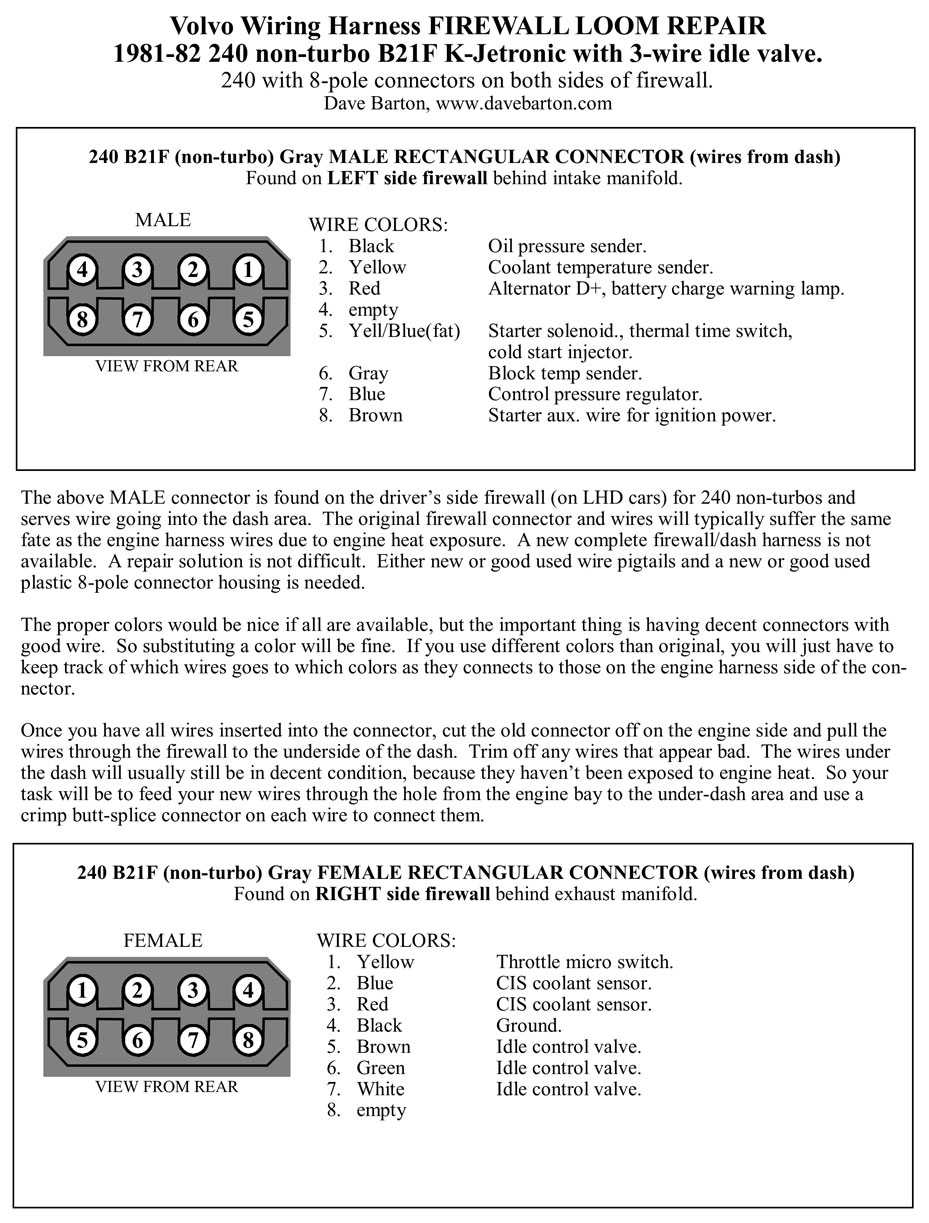

Page 12 |
