| Pin Function Diagrams 1981-85 240 TURBO B21FT with Bosch Breakerless Ignition |
 |
Updated: December 26, 2025
CONTACT
|
D O
M A I N S
 |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
 |
 |
 |
|
|
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
 |
 |
|
 |
 |
 |
 |
 |

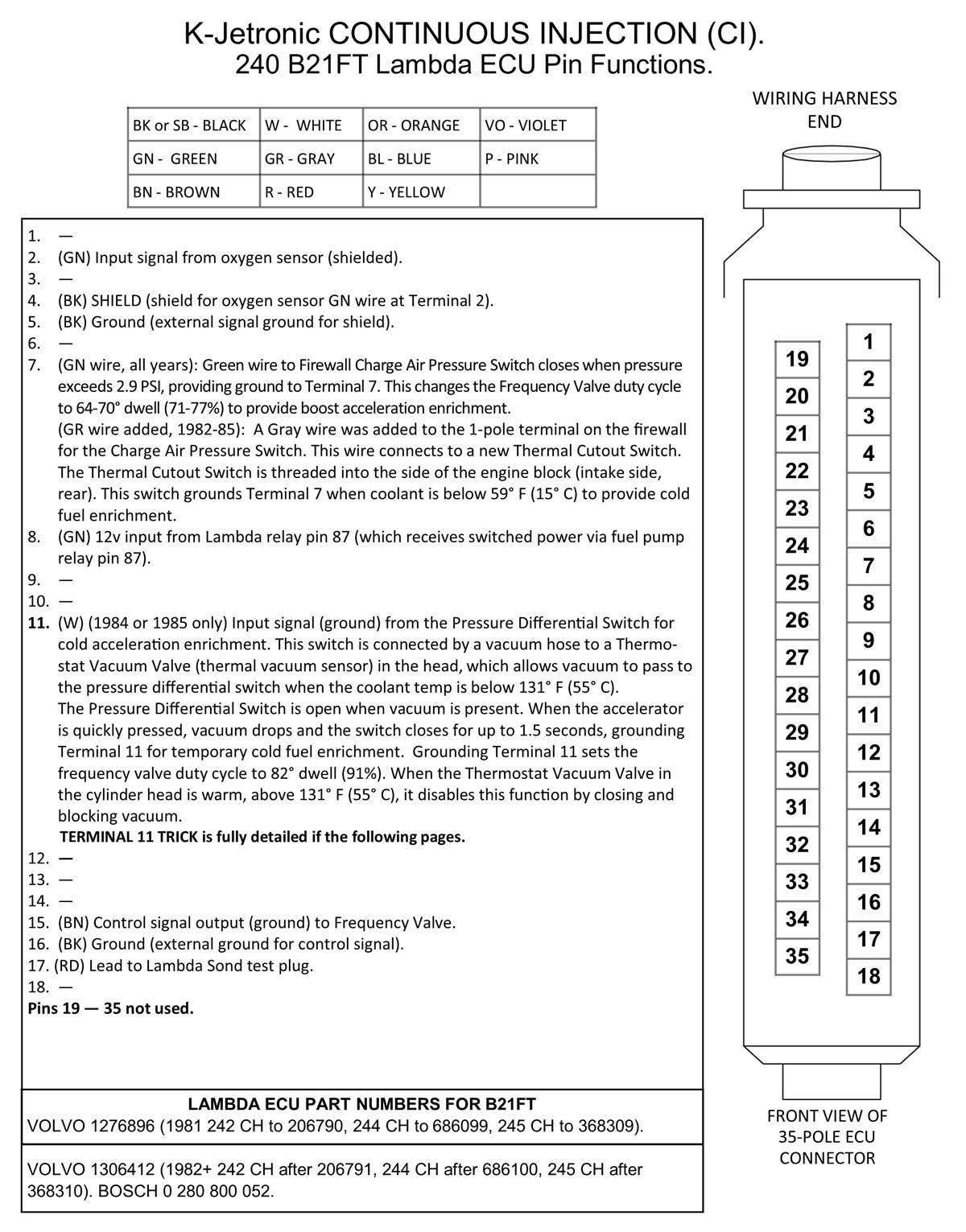

Page 1 |
| Page 2 The fuel pump relay shown below requires a coil tachometer signal to activate. More about this can be found in the Fuel Pump and Fuel Pump Relay Page. More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |
| Page 3 The fuel pump relay shown below requires a coil tachometer signal to activate. More about this can be found in the Fuel Pump and Fuel Pump Relay Page. More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |
| Page 4 The fuel pump relay shown below requires a coil tachometer signal to activate. More about this can be found in the Fuel Pump and Fuel Pump Relay Page. More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |
Page 5 |

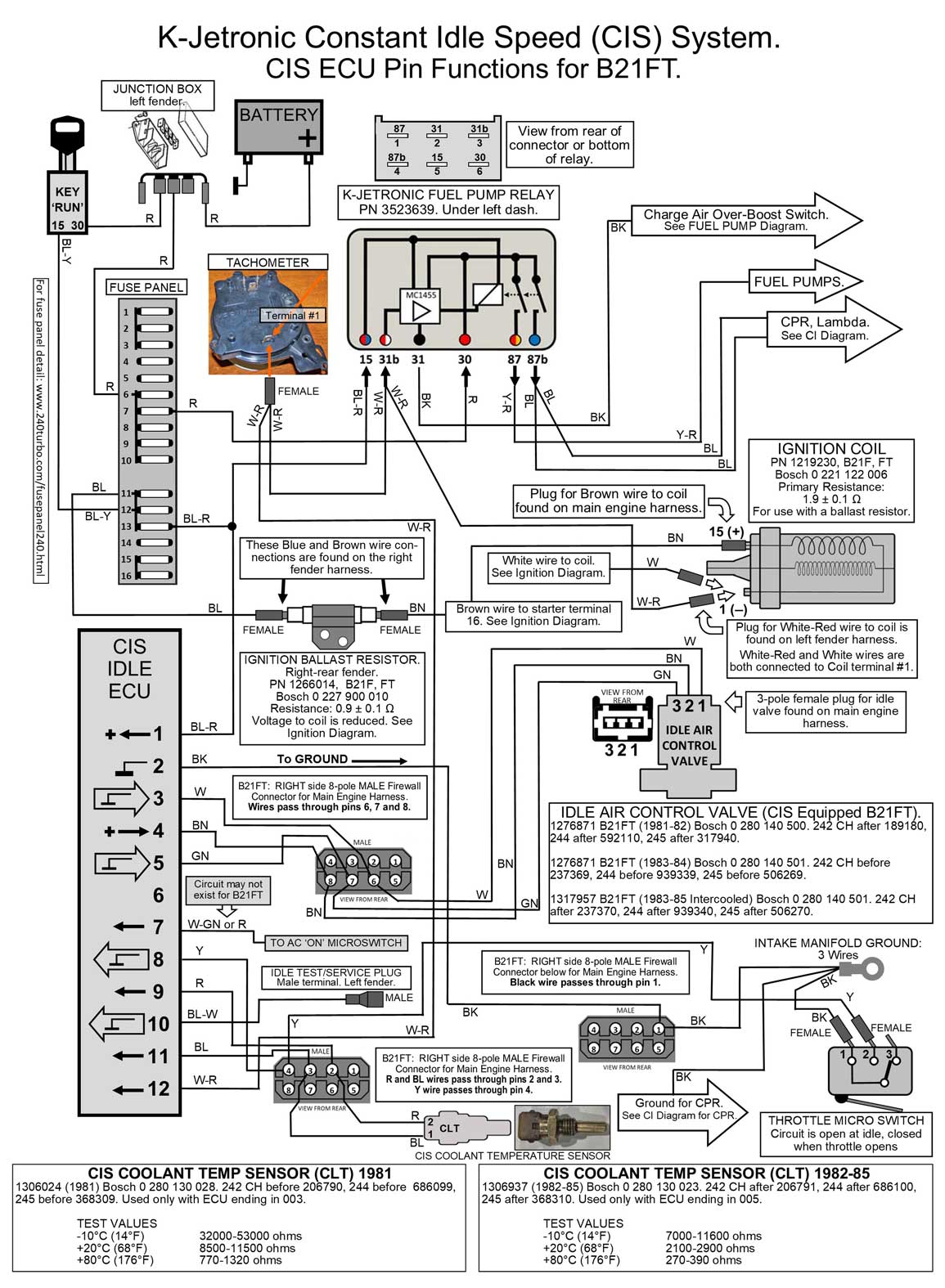

| Page 6 The fuel pump relay shown below requires a coil tachometer signal to activate. More about this can be found in the Fuel Pump and Fuel Pump Relay Page. More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |

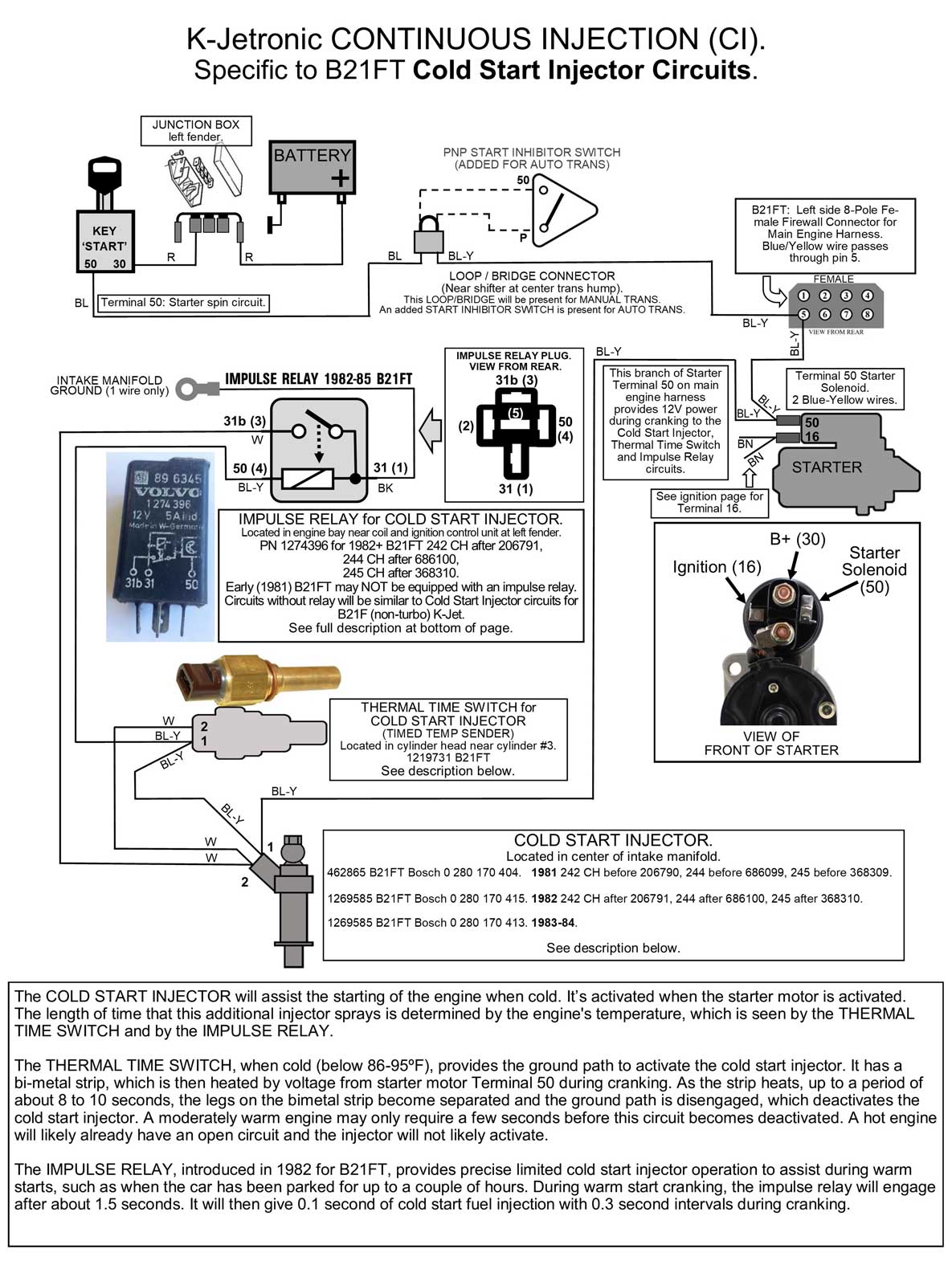

Page 7 |
Page 8 |

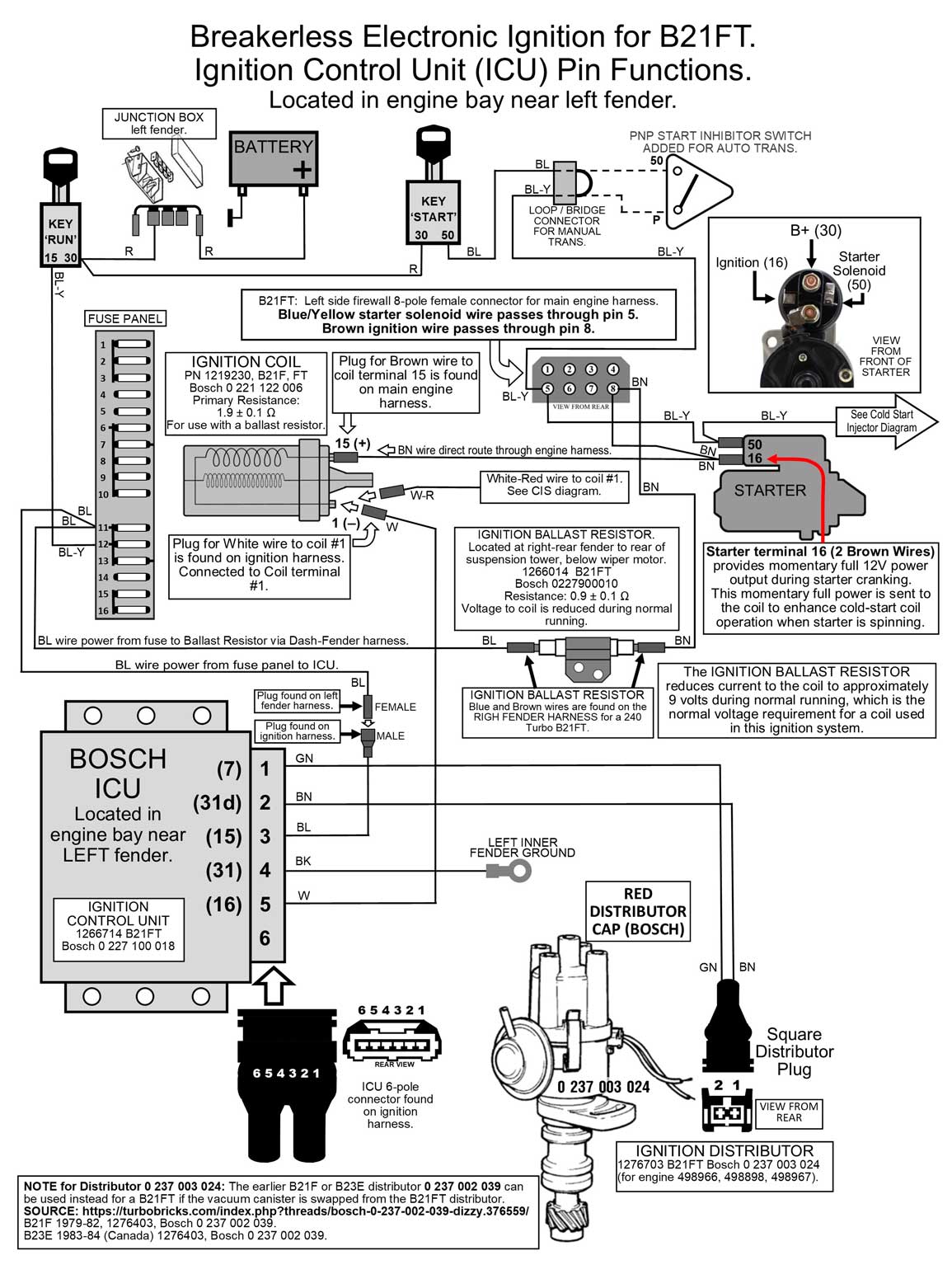

| Page 9 More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |

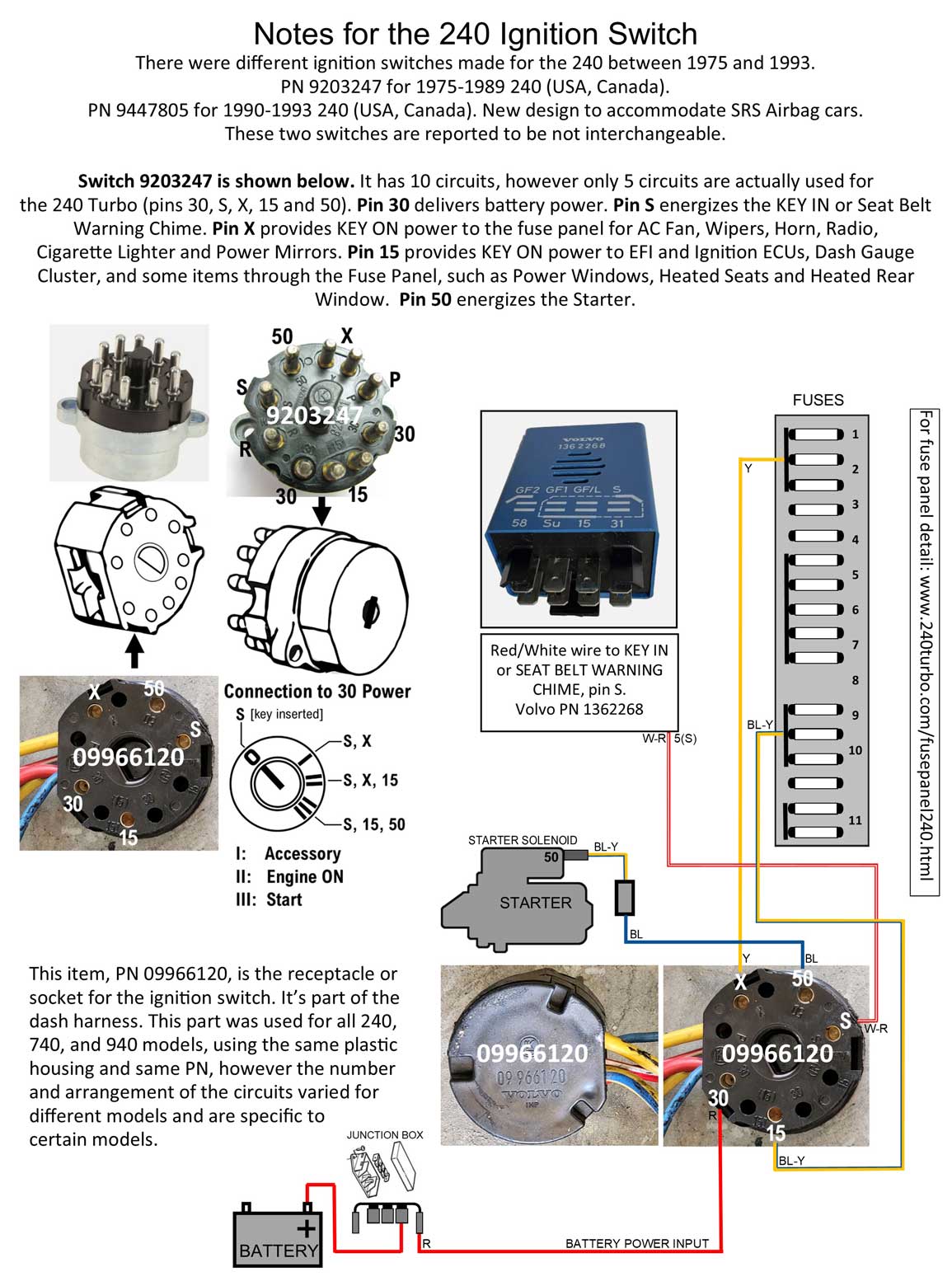

| Page 10 More specific Fuse Panel info can be found in the 240 Fuse Panel Page.  |

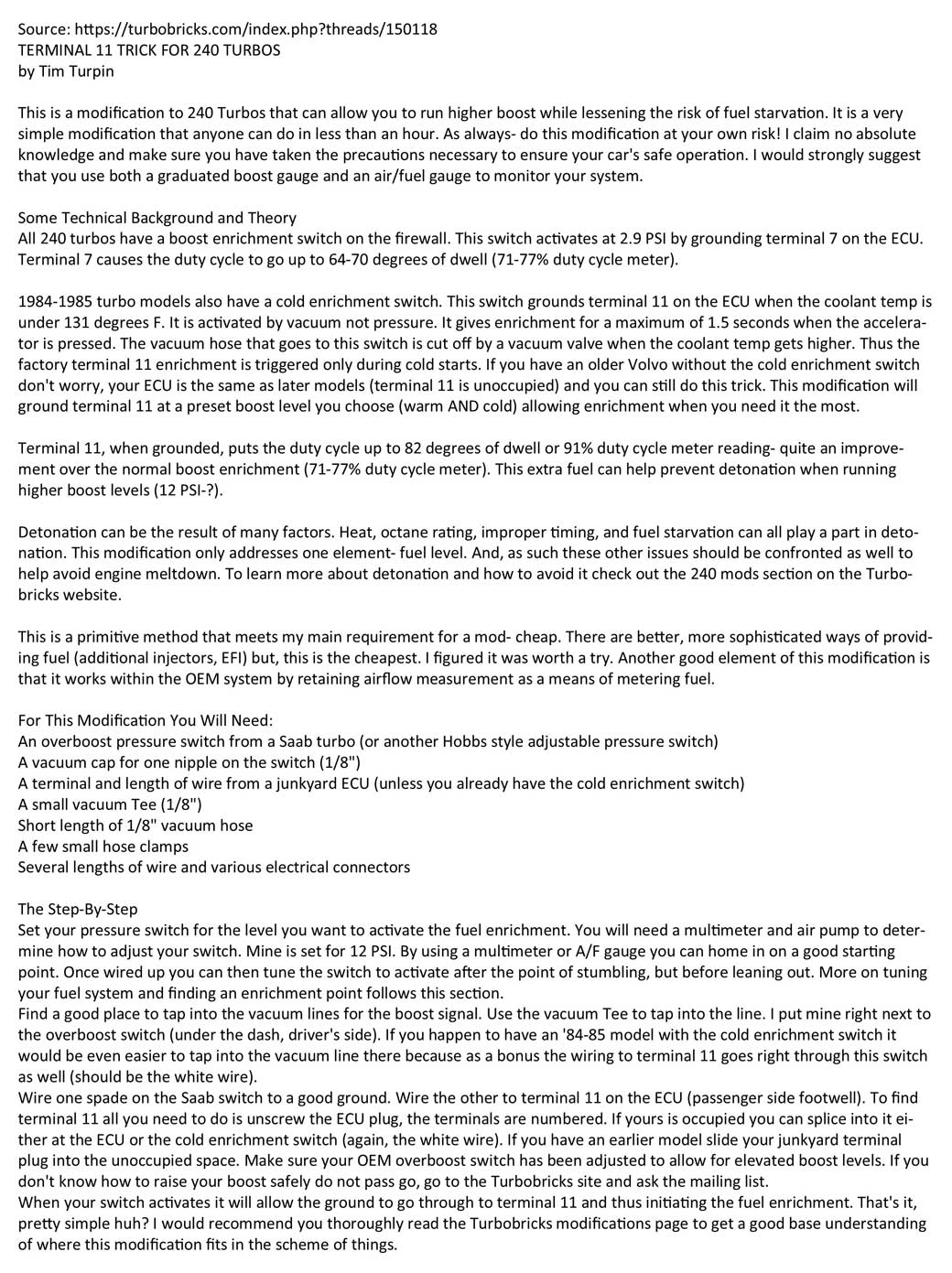

Page 11 |

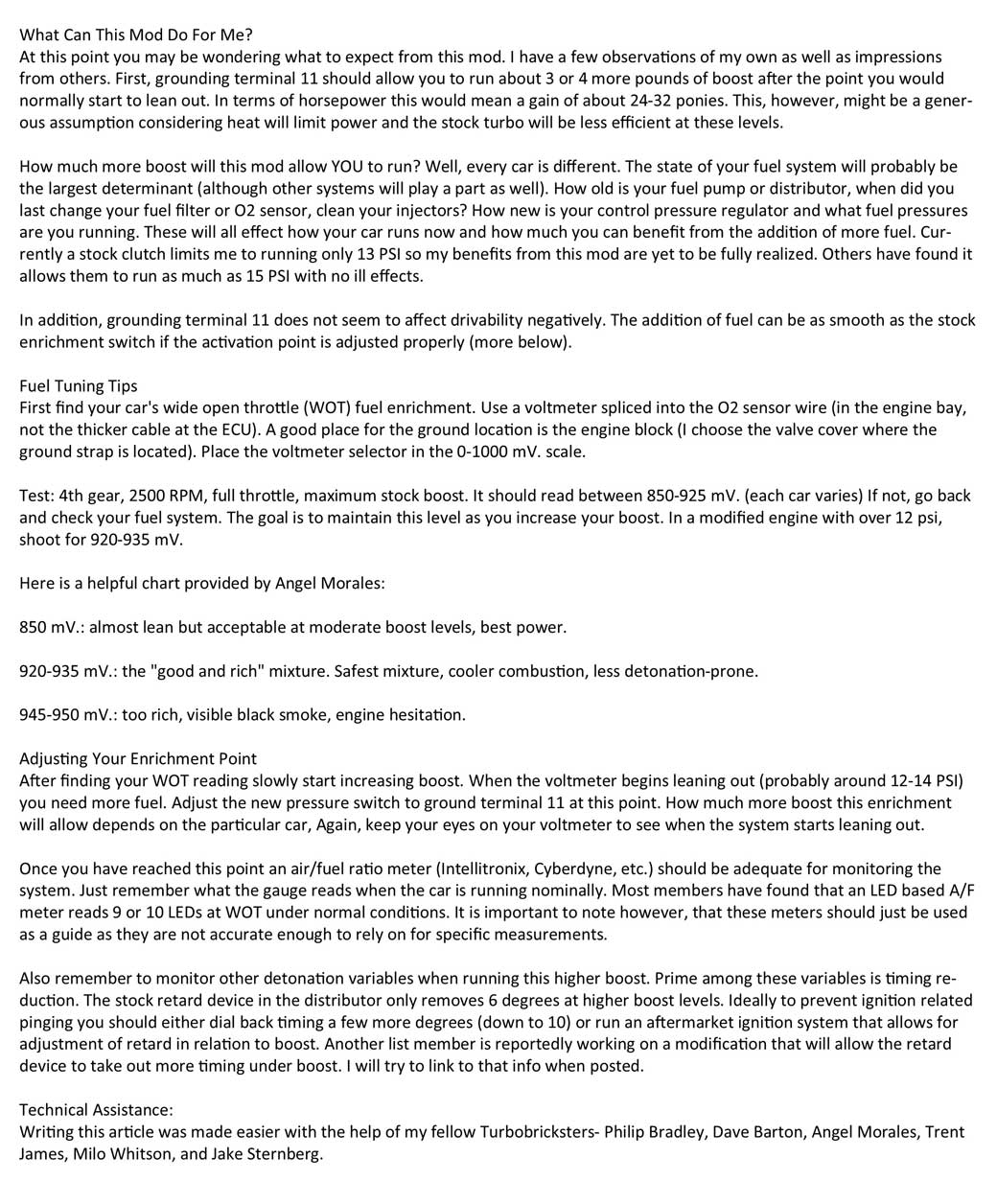

Page 12 |

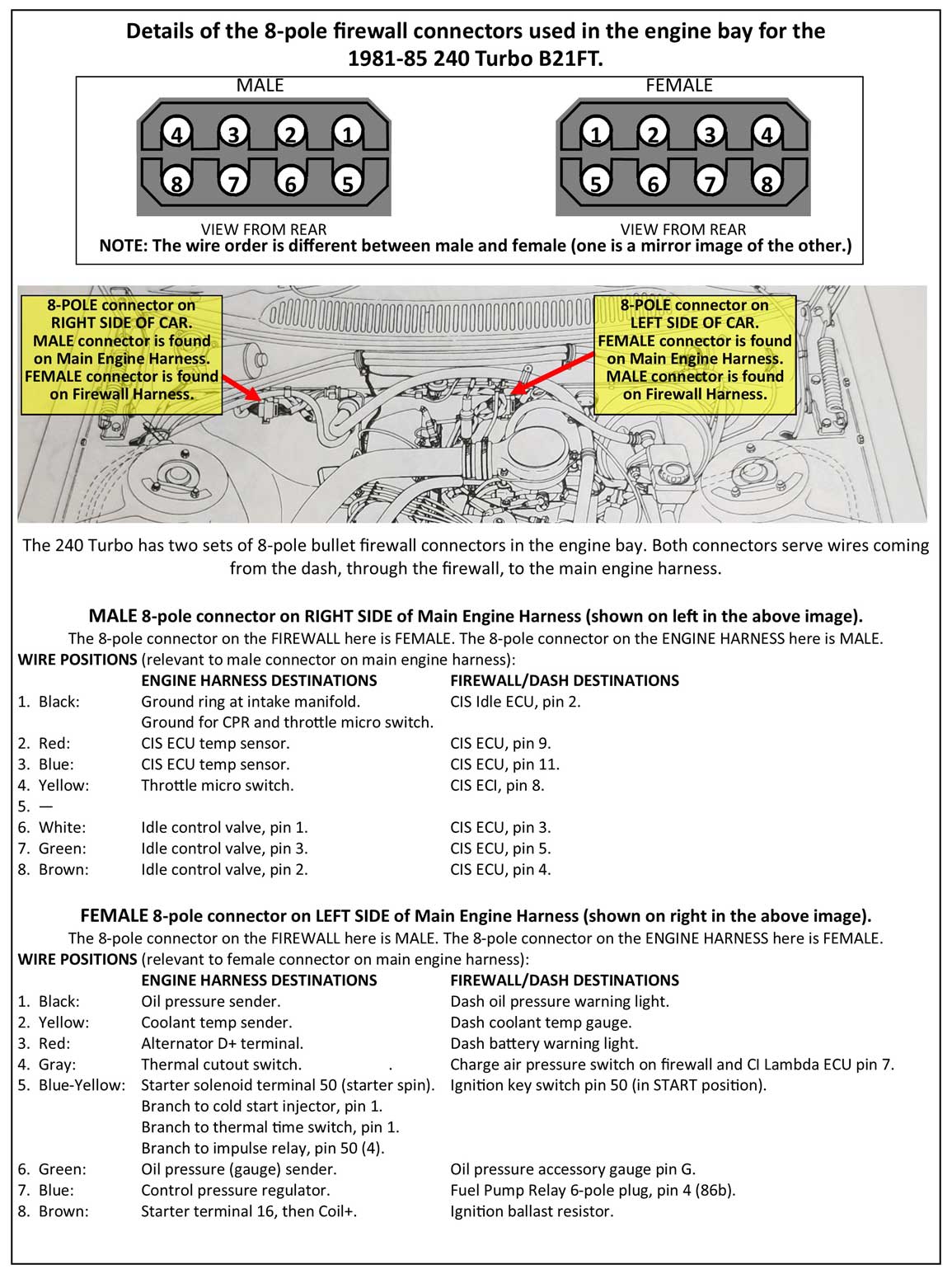

Page 13 |

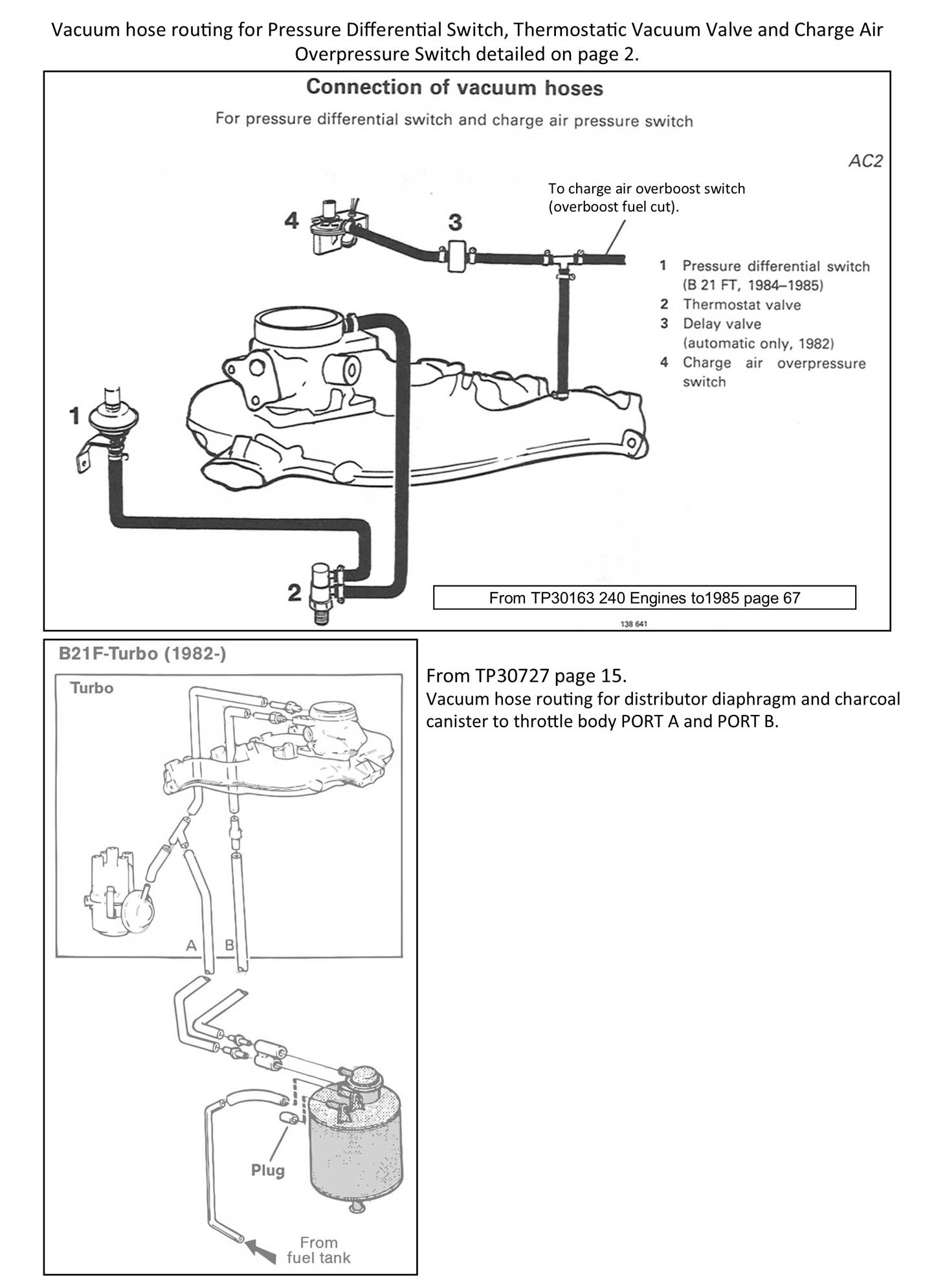

Page 14 |

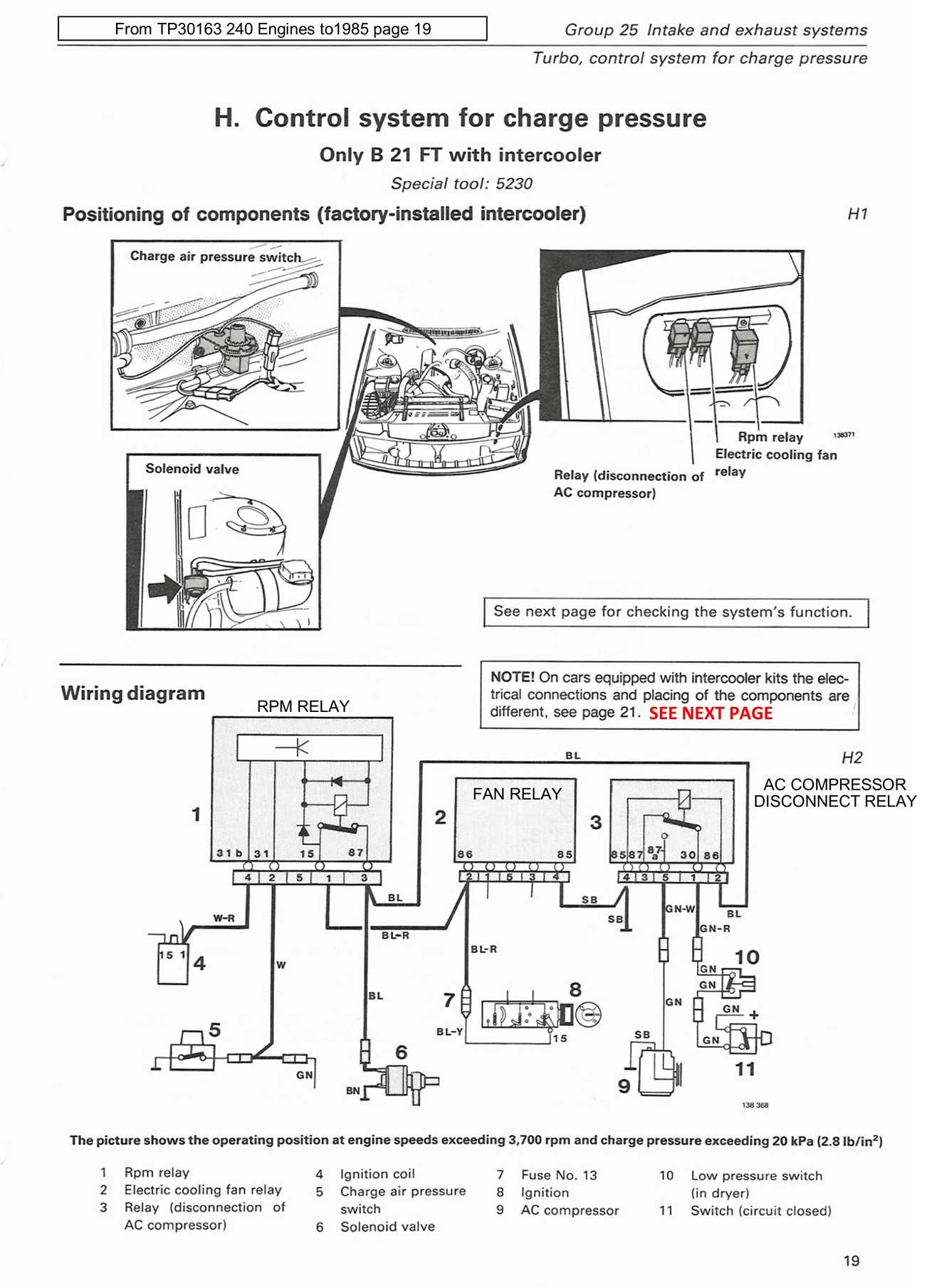

Page 15 |

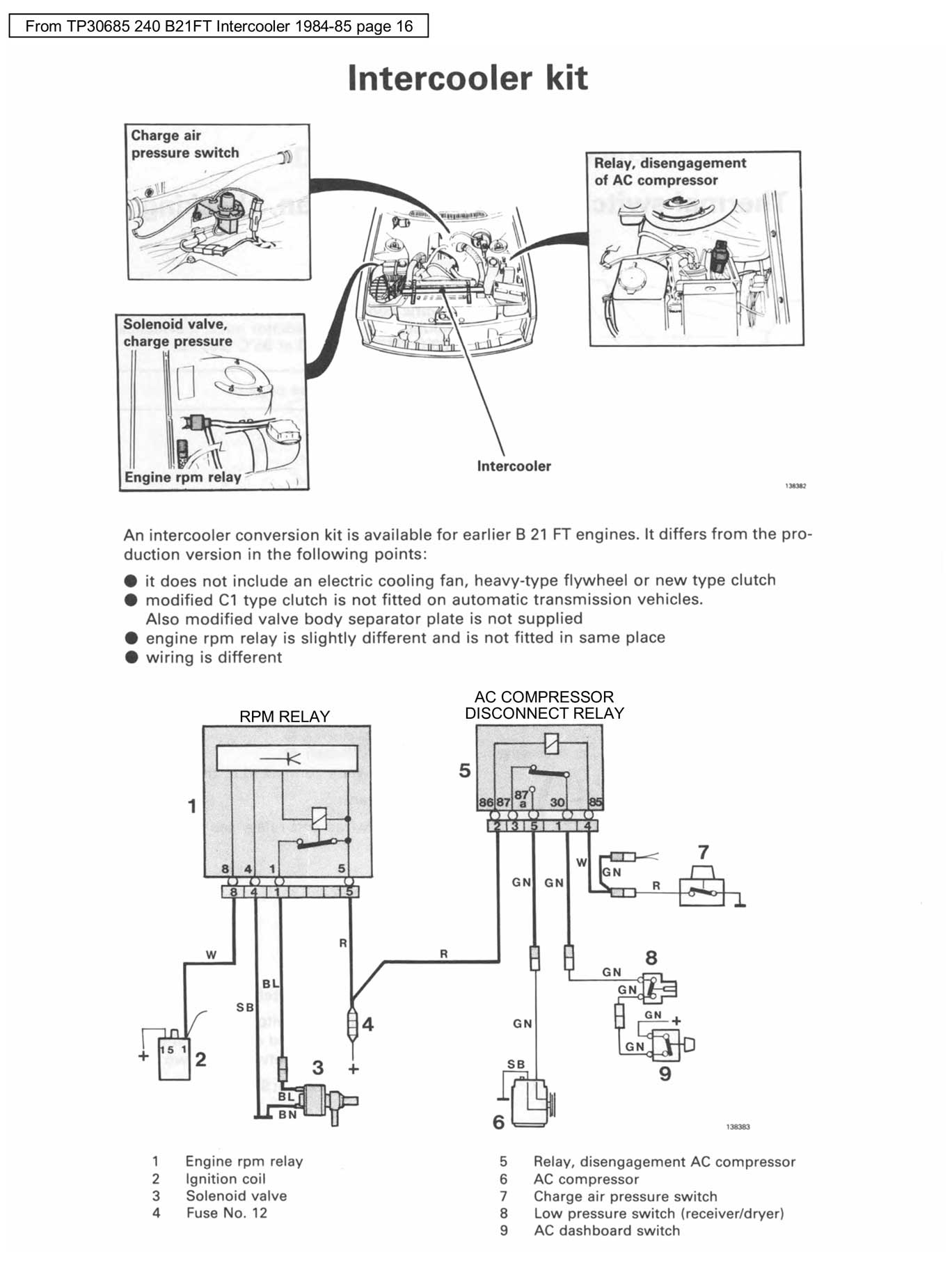

Page 16 |

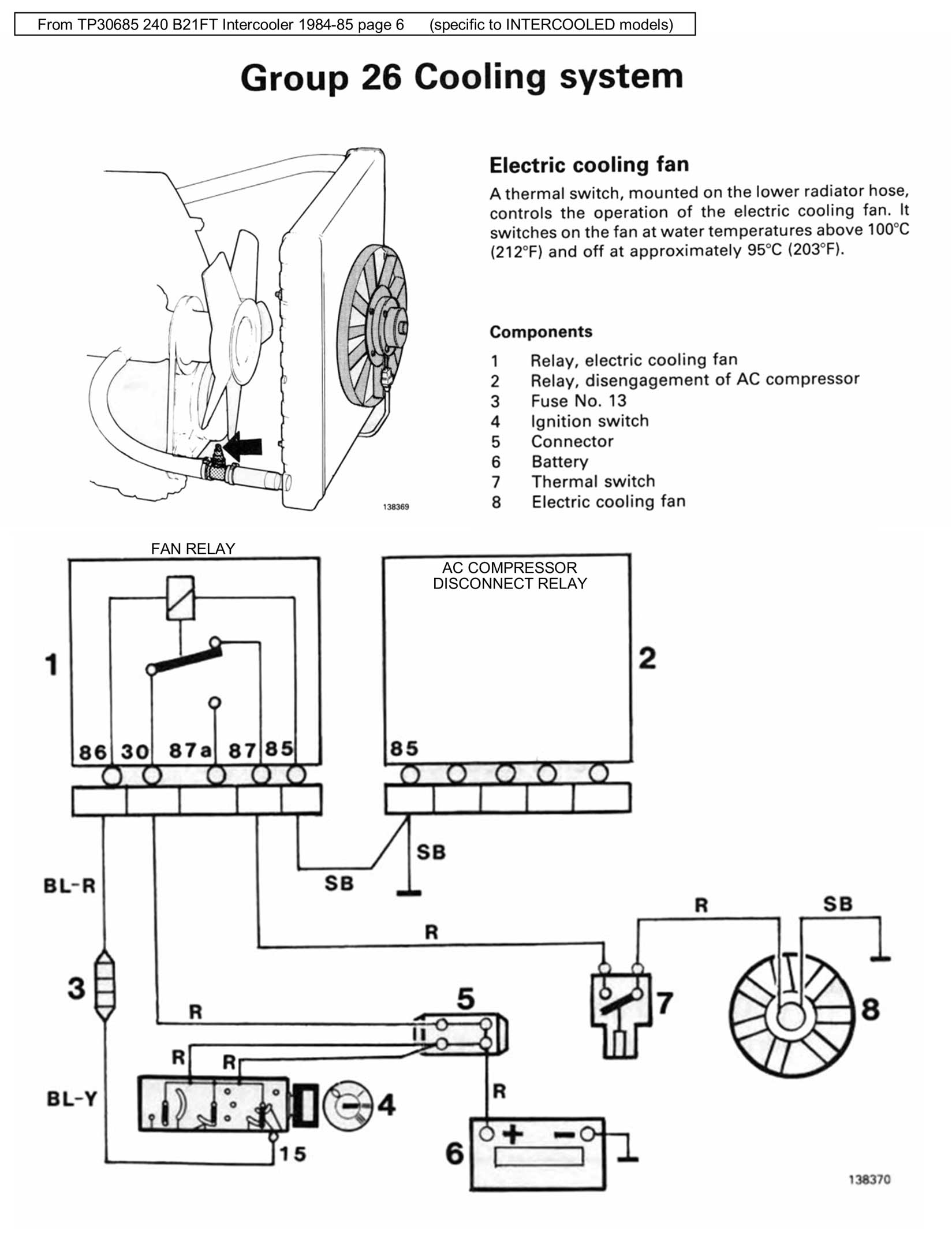

Page 17 |
